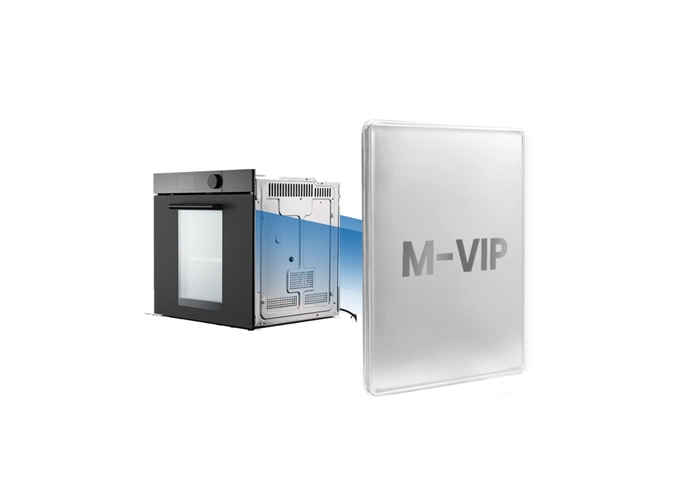

Supertech-M-VIP, designed for steam ovens, it overcomes the challenge of high temperatures of 800°C and provides efficient, safe and reliable thermal insulation solutions.

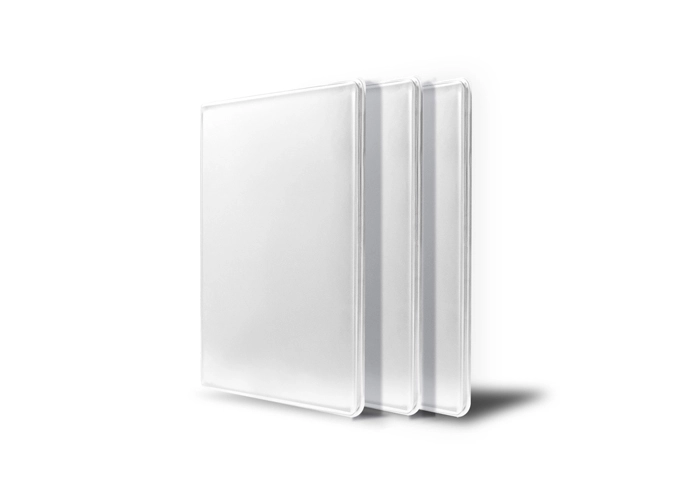

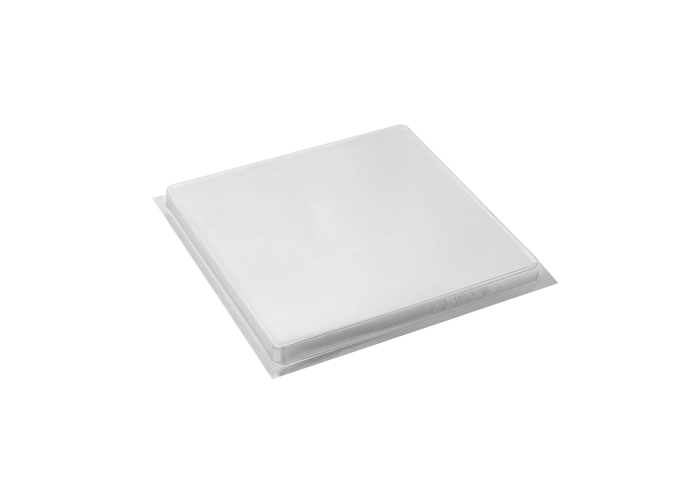

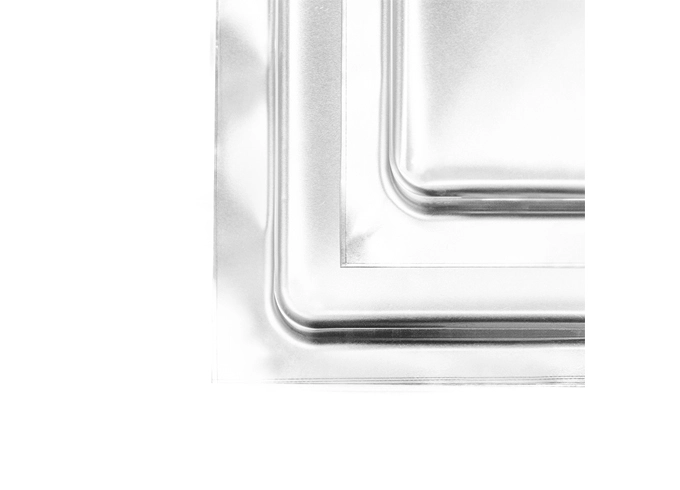

The stainless steel film is wrapped in inorganic high temperature resistant core material, and after vacuuming, it is packaged by welding to form an ultra-thin insulation layer with insulation performance, which is not affected by the environment, effectively blocking heat conduction, convection and radiation, and blocking the influence of water, moisture and core suction, so as to achieve high efficiency and energy saving.
| Specification | ||
| Thermal conductivity(25℃)≤0.0020W/m ·K | Recommended operating temperature-196℃-800℃ | |
| Density | Volume density: 250-420kg/m | compressive strength(≤10%): s0.5MPa |
| Areal density(10mm): 2-5kg/m | ||
| Standard size | Maximum:5001000mm | Leakagerate:<10 -10Pa-m3/s |
| Minimum:100x100mm | ||
| Thickness:3-20mm | ||
| Other sizes and shapes can becustomized as required | Class A flame retardant | |
